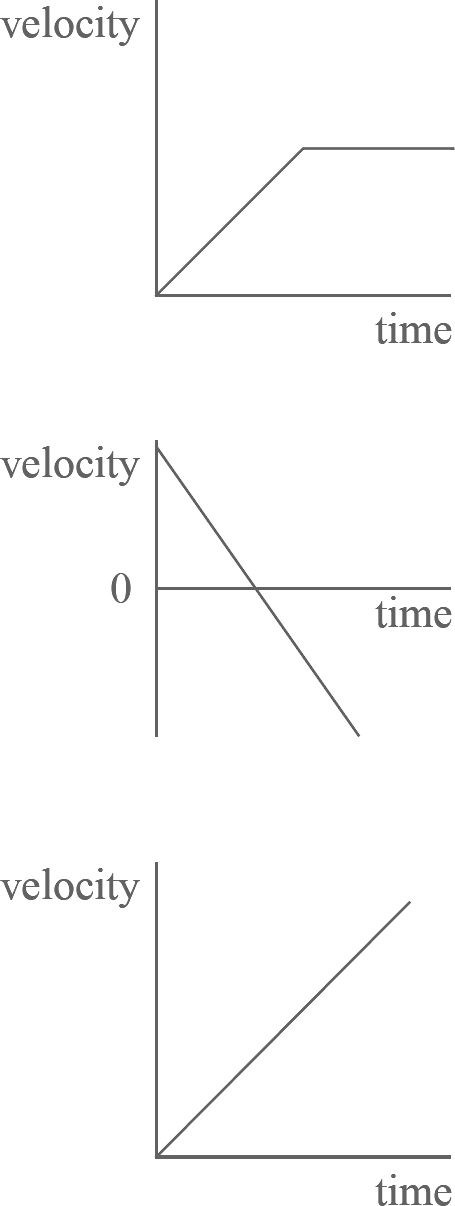

Given that information, draw potential displacement vs. time and acceleration vs. time graphs for each of them. Additionally, give an example of a situation that could produce each of the three graphs above.

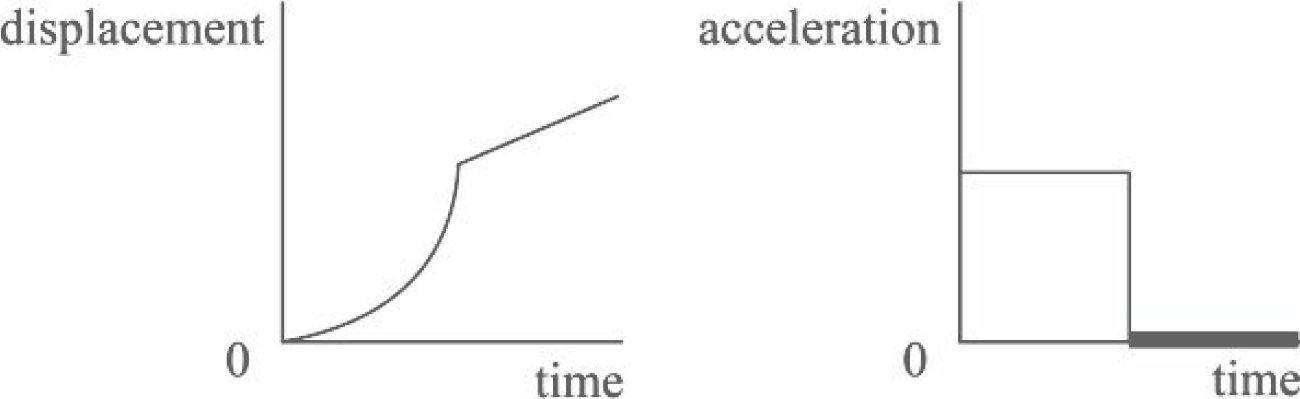

The other two graphs for the first situation would look like this:



These graphs could be made from a car or plane accelerating up to a certain speed and then maintaining it.

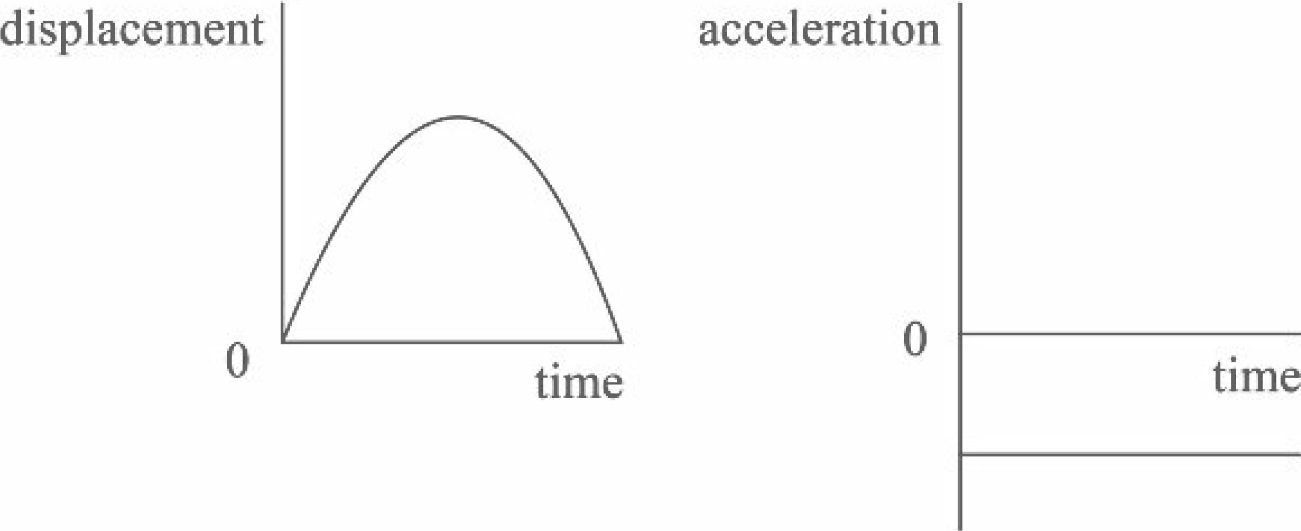

The next set of graphs should look like this:



These could be made from any case of ideal projectile motion.

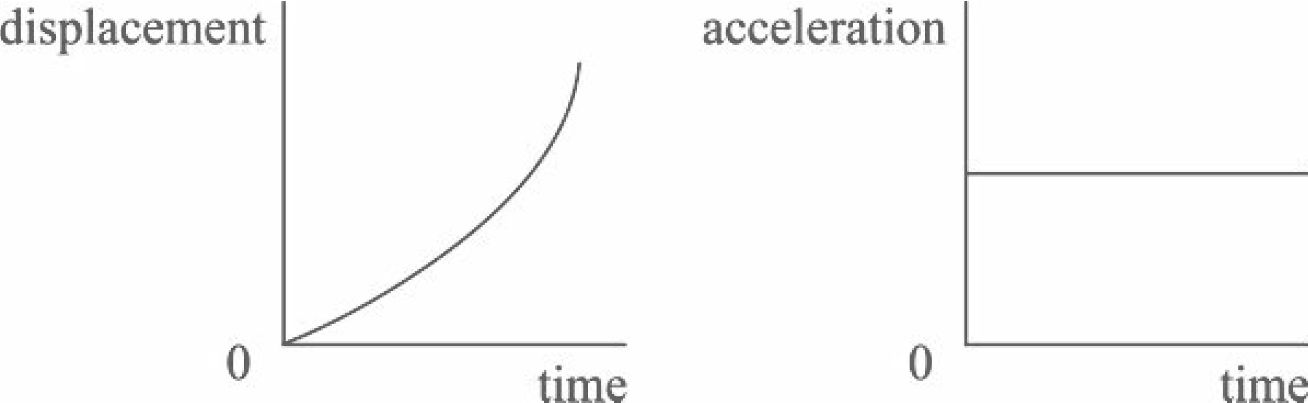

The final set would look like this:



These could be made from an object undergoing uniform accelerated motion.
